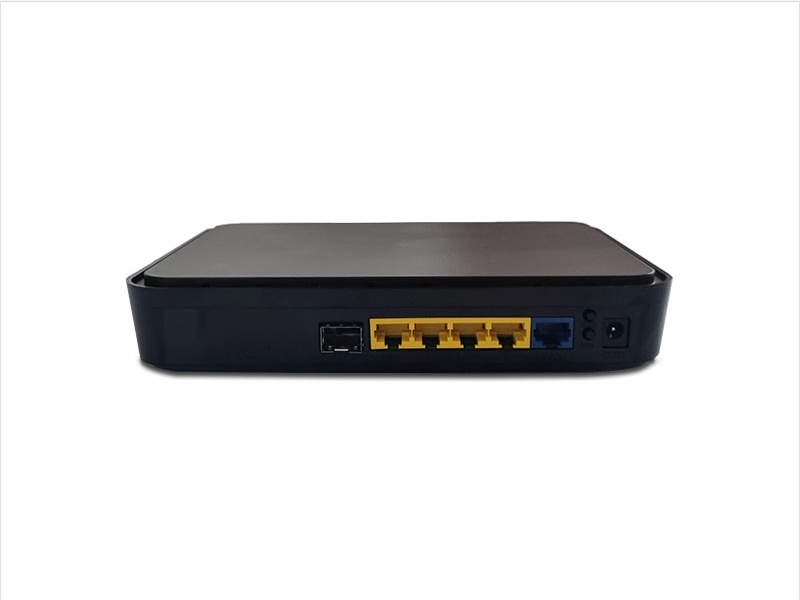

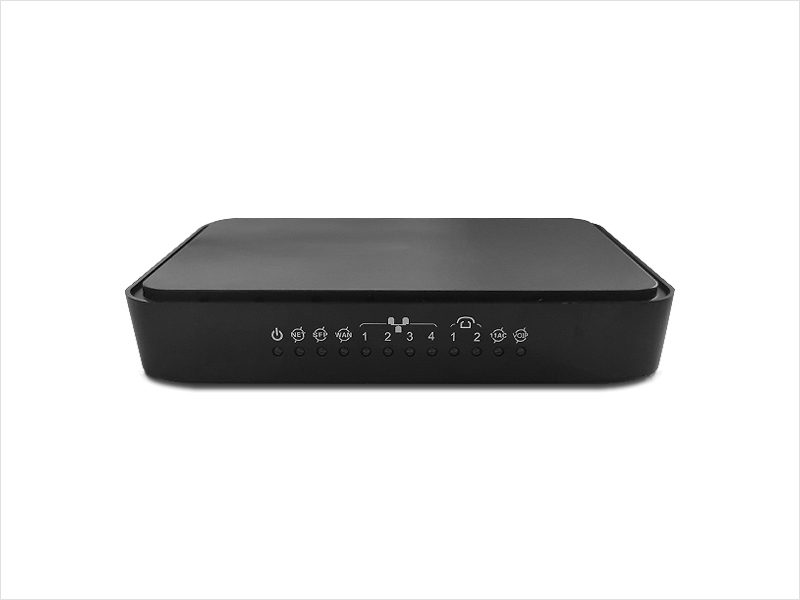

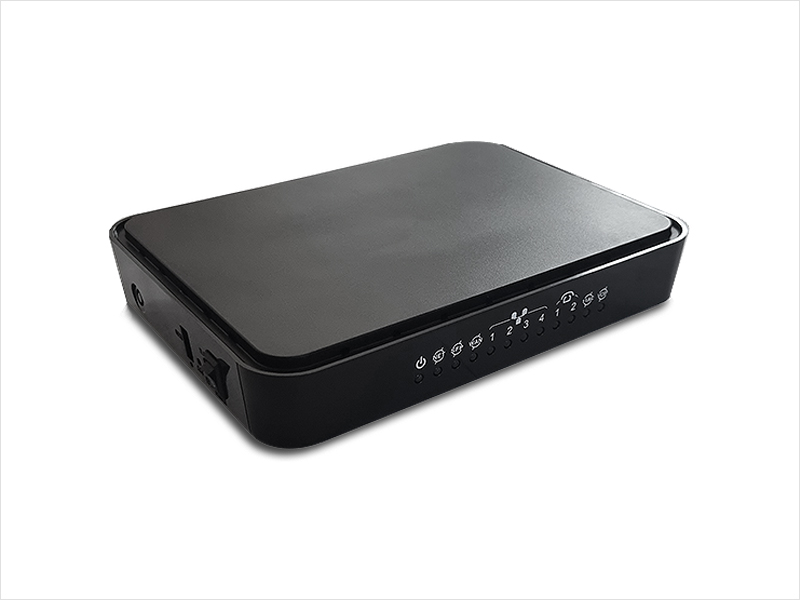

DUAL WLAN Router is the next-generation FTTH CPE improving the features and performance of Gigabit SFP WiFi Router FG8000N. The seamless connectivity and high wireless bandwidth capability are the outstanding advance compared with the current market product. With flexible uplink Fiber and Ethernet, FG8000N gets a real sense of seamless connectivity to achieve always online anywhere, anytime. Inserting the latest Wireless chipset, WiFi AC bandwidth is up to Gigabit and antenna supports 2R2T or 3R3T. For meeting Carrier triple play solution, through the Fiber Tray design, FG8000N is able to multiplexes several optical carrier signals onto a single optical fiber, enable the communications over one strand of fiber for CATV or Internet services.
| Data Network | |
| WAN | 1x1001000 Mbps WAN Ethernet 1x100/1000Mbps SFP |
| LAN | 4 x10/100 MbpsEthernetPort |
| WAN Access Mode | Static IP address , PPPoE , DHCP |
| Networking Interface | Multi WAN, Bridge Mode,802.1Q |
| QoS | Destination/Source MAC/IP,Application,DSCP, Packet Priority, Bandwidth Limitation |
| Advance Routing | Static Route,Policy Route, DNS Proxy |
| NAT | RIP,Port Forwarding/Triggering,DMZ,ALG |
| Internal Address Management | DHCP Server, DHCP Relay |
| Networking Protocols | TCP/ IP( IPv4/v6) , UDP, RTP,SNTP, NAT, DHCP, DNS, DDNS |
| VPN | IPSEC,PPTP,L2TP,EOIP |
| WIFI WLAN | |
| Standard | IEEE 802.11b/g/n(2.4GHz) IEEE 802.11 ac(5.0GHz) (Optional) |
| Security | WEP,WPA,WPA2,WPA-PSK,WPA2-PSK |
| WIFI Features | WMM, WLAN-LAN Isolation,Multi SSID(X4), AP Isolation |
| Antenna Type | 2R2T for IEEE 802.11 b/g/n 3R3T for IEEE802.11 ac |
| TV | |
| IPTV | IGMP Proxy/Snooping,IPTVBridge |
| CATV(Optional) | Wide 40 MHz ~ 870 MHz bandwidth, supports CATV analog channels , a combination of analog and digital channels including HDTV broadcast |
| Firewall & Security | |
| Standard | IDS&IPS, Block Ping/ICMP/IDENT IP and MAC Address Bind SPI Firewall,Port scan restriction |
| Access control | Blocking by URL, IP Address Mac Address, Protocol Type,Port |
| Management | |
| Management Protocol | CLI, SNMPV1/2, TR069, Web |
| LED Indications | Total 15 LEDS for Power,WAN/LAN, Phone,USB |
| Control Button | WPS Button, WLAN Button,Power Switch, Reset Button |
| Environmental | |
| Size | 204mm x151mmx37mm |
| Net Weight | 600g |
| Fiber Tray | Optional |
| Power Supply | 12V/2A |
| Operation Range | 0°to40℃, 32°to113°F |
| Humidity | 10-90% non-condensing |
